"E"MOTION H.O. CONTROLLERS

#DD530 H.O. Controller

Difalco Design, the number one name in custom 1/24th slot car controllers, is coming to H.O. racing. Our controllers have won over 80% of all classes held at the 1/24th USRA Div. 1 Nationals the last 8 years. Our line of 1/24th “E”Motion electronic transistor controllers have quickly become known for their innovative features, reliability and ease of maintenance.

STANDARD H.O. CONTROLLER FEATURES

  • Computer designed and labeled circuit board. Wiper bands are nickel plated for durability and will not tarnish.

  • Fifteen wiper band contacts instead of eight for smoother power application and more control than eight band designs.

  • Exclusive computer routed fiberglass frame. Will not cause shorts and keeps wiring neat.

  • Electronic transistor design has a wide range sensitivity pot to control all types of H.O. cars. No wiper band arcing.

  • Heavy duty 10 gauge silicone wire and floating silver power contact. Lower voltage drop than 14 gauge wire for more power to your car.

  • New Acu-Pivot Trigger Pin reduces bushing play to a minimum and keeps that new controller feel.

  • Circuit protection. Resetable fuse on brake circuit automatically starts working after hook up is corrected. Reverse polarity diode protects transistor from damage.

  • Incredibly simple design. No hidden components! Our controllers can be repaired by any racer! Complete instructions describing features, maintenance and troubleshooting included.

  • Dual polarity - simple, tamper resistant plug system switches between positive and negative polarity tracks.

  • Brake/Off/Coast switch with full range brake/electronic coast pot. Electronic coast uses the transistor to power the car instead of a rheostat which can burn out more easily.

  • No brake post required! Unlike other transistor controllers you don't need a brake connection to make this controller work! Electronic coast feature still functions also.

OPTIONAL FEATURES

  • Electronic Choke. Simply turn down the separate choke pot to reduce track power to the car when needed. Makes fast cars more drivable on tight twisty tracks and boosts your race lap totals.

  • “Fanatic” feature. This feature sets Difalco Design controllers apart from everybody else! An individual adjustment pot on each band is used to instantly change the controllers power curve for the ultimate control! With the turn of a small screwdriver you can make each band more or less sensitive. Tune any car to any track or driving style!

H.O. CONTROLLER MODELS

DD500 - H.O. Pro Controller. New low cost controller features 15  band fixed resistor design  like the DD515 and DD520 models. Brake and sensitivity rheostats (no coast), 14 gauge main wires and super small heat sink (1” x 1.25” x 3/4”) for light weight. Comes factory wired for positive polarity (can be changed by reversing two wires soldered to the transistor).  Controls all Fray, Stock, Modified and R/O type motors. $179

DD515 - H.O. Pro Plus Controller. All standard features listed above. For everything from T-Jets to Unlimited cars! $220

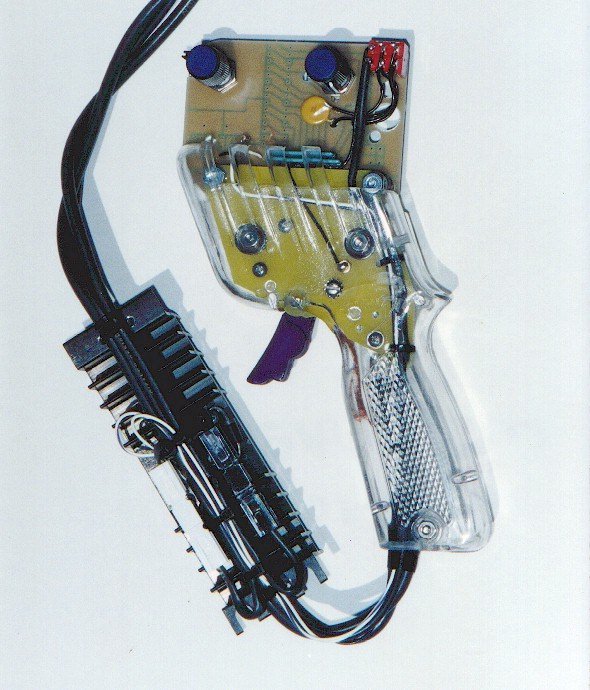

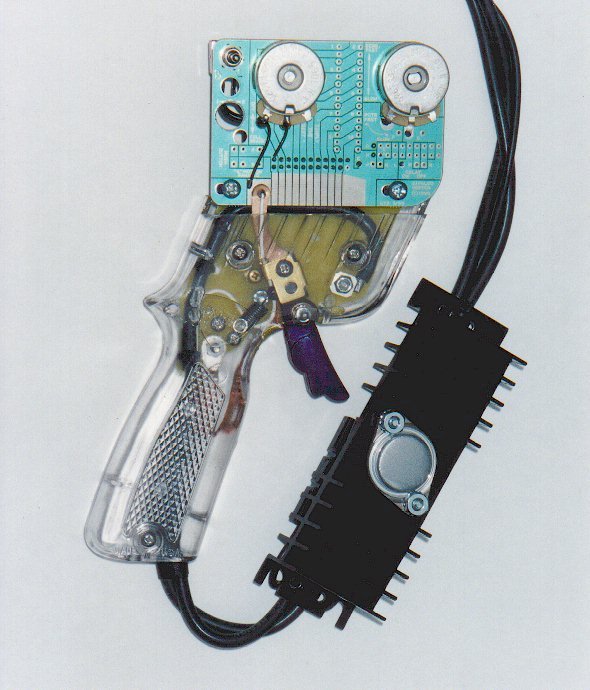

Front View  Rear View

DD520 - H.O. Pro Plus Controller. All the features of the DD515 model with optional choke feature. $250

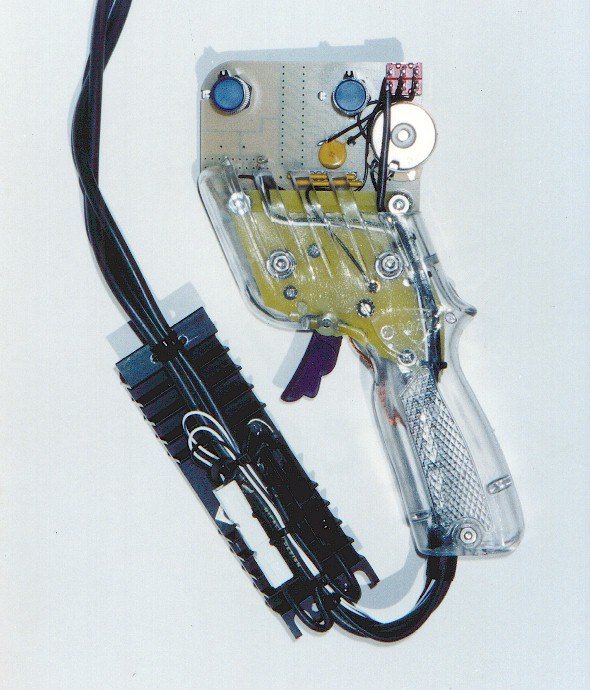

Front View  Rear View

DD525 - H.O. Fanatic Controller. All standard features listed above with Fanatic option added. $250

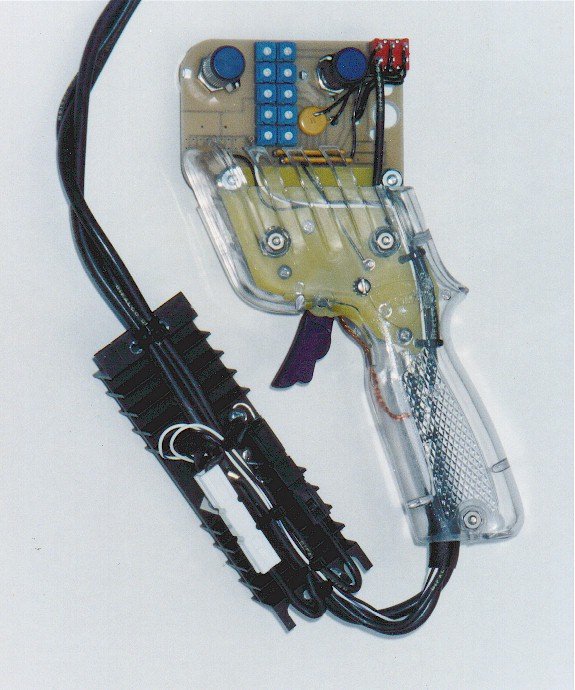

Front View  Rear View

DD530 - H.O. Fanatic Controller. Top of the line! Standard features, Fanatic option and electronic choke. $280
Front View  Rear View

DD550 - Power Transistor. Replacement power transistor. $11

DD551 - Brake/Coast Switch. Replacement switch used to select brake or coast feature. $8

DD552 - Brake Coast Pot. Replacement pot used to adjust brakes or coast power. $12

H.O. HD30 CONTROLLERS

DD521-HD30: The same overall construction as our current controllers. 100 ohm brake rheostat. Comes standard with a 290 ohm resistor network. Brake/coast switch and dual polarity. $258

DD531-HD30: All the features of the DD521 with our adjustable choke rheostat installed. $288

 H.O. HD30 UPGRADE PCB

DD553: HD30 Upgrade PCB: (This upgrade kit is for any model without a choke) Convert your DD515 or DD525 10 or 15 band Pro Plus or Fanatic H.O. controller to our new 30 band high definition design. You get the HD30 circuit board with a standard 290 ohm resistor network board installed. Simply unsolder a few wires and remove the old PCB. Transfer the original brake and sensitivity rheostats over to the new HD30 board. Now bolt the PCB to the frame and solder a few wires to their correct positions. Simple instructions included. $56

DD554: HD30 Upgrade PCB: (This upgrade kit is for any model with a choke) Convert your DD520 or DD530 10 or 15 band Pro Plus or Fanatic H.O. controller to our new 30 band high definition design. You get the HD30 circuit board with a standard 290 ohm resistor network board installed. Simply unsolder a few wires and remove the old PCB. Transfer the original brake and sensitivity rheostats over to the new HD30 board. Now bolt the PCB to the frame and solder a few wires to their correct positions. Simple instructions included. $56

DD555: Fanatic Upgrade Pots. Kit includes 15) 20 ohm Fanatic pots to convert your 15 band Pro Plus controller to a Fanatic model. Adjustable pots allow you to tune each band for total control of your band sensitivity. Unsolder and remove the individual resistors and solder the new Fanatic pots in place. $22

H.O. HD30 RESISTOR NETWORKS

Miniature plug in circuit board allows racer to change the overall band resistance to best suit the type of motor being used. The higher the listed ohms the slower the band response and the lower the listed ohms the faster the band response. The standard networks are soldered and ready to install and have the same value resistance per band. The custom networks have miniature sockets and various values of resistors that can be mixed and matched to get the desired band response. All H.O. and 1/32 controllers come standard with a 290 ohm network. As a comparison, our 15 band Fanatic controllers have 300 ohms of total resistance.

Note: the network resistance, 290 ohms for example, is the resistance needed to control our transistor circuit and should not be confused with the ohms rating on a typical Parma type resistor.

H.O. CONTROLLER AVAILABILITY

Difalco Design H.O. controllers are sold and distributed by Difalco Design and Wizzard High Performance. Commercial discounts are available to retail businesses. Club or mail order customers without a local raceway or hobby shop please contact Wizzard High Performance or Difalco Design for ordering information. Please support your local raceway that gives you a place to race by buying our products there when possible. Check out the Wizzard High Performance web site for their extensive line of H.O. cars, accessories and informative H.O. bulletin board.
