CONTROLLER MODULES

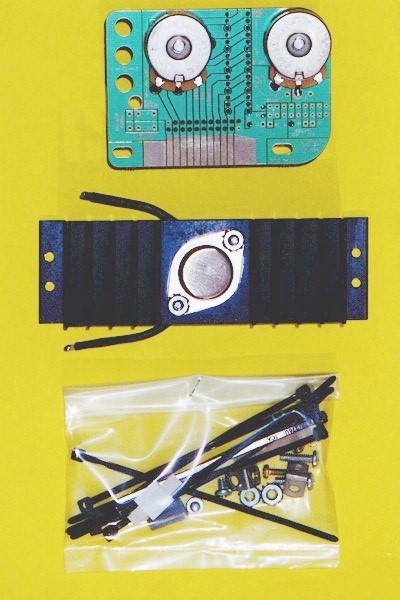

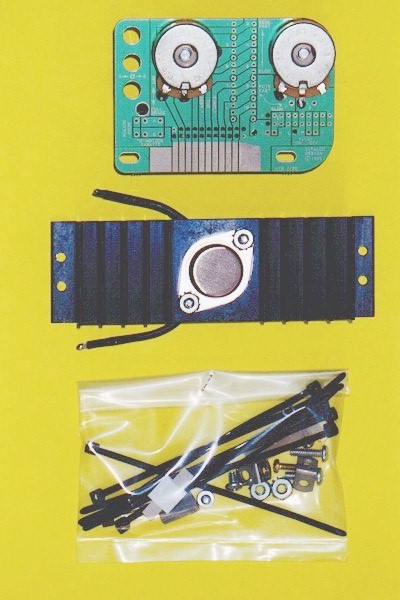

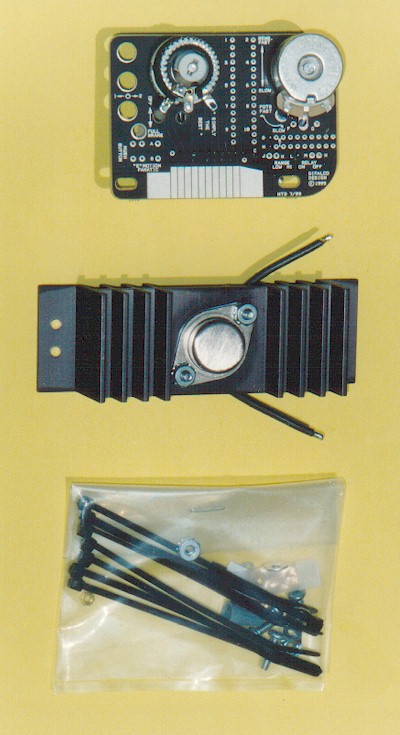

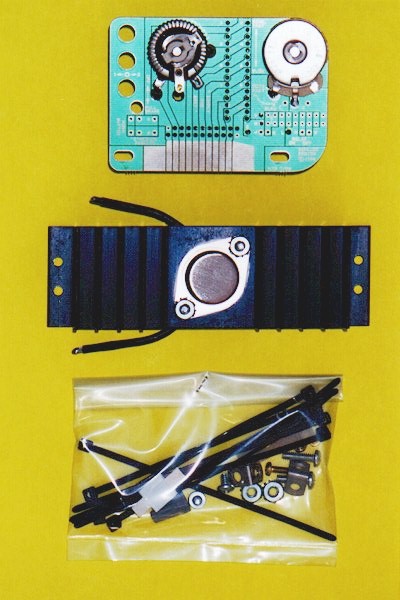

All modules now use our "E"MOTION 2 15 band circuit board. Our new slotted circuit board mounts lower in a turbo frame for much better alignment with the wiper arm. New slots also locate the circuit board from top to bottom and side to side for easier assembly. This also keeps the circuit board much flatter after installation. You also have the option to solder the fuse on the circuit board instead of in the lower handle which simplifies wiring. DD229-15 - "E"MOTION PRO PLUS MODULE. Economy type brake rheostat combined with our larger heat sink/transistor module. Great choice for racers who want our lowest priced unit that will run 16D to Group 7 motors. $89 DD225-15 - "E"MOTION PLUS CONTROLLER MODULE. Designed to run from 16D to Group 7 motors. Same as DD229 but has Pro Brake Rheostat with off position. Larger heat sink/transistor module. Plug and play components. Auxiliary holes for Choke Bypass or mush button switches. $127 DD230-15 - "E"MOTION FANATIC MODULE. Features economy type brake rheostat, larger heat sink/transistor module, and 10 resistance pots for individual band adjustment. For 16D to Group 7 motors. $116 DD231-15 - "E"MOTION FANATIC MODULE. All the great features of the DD230 module but with Pro Brake Rheostat upgrade, our top of the line module. $154 “E”MOTION 3 MODULE FEATURES
1/24 HD30 MODULES These electronic modules are an inexpensive way to convert your Parma turbo controller to a full function electronic controller. Save about $120 compared to our complete factory model. Text with drawings included for assembly. The kits can also be mounted on our DD242 D.I.Y. Frame and wire kit ($32) so you can build our factory controller from scratch. DD253-HD30: Conversion module with economy rheostat. Standard 148 ohm network. An inexpensive way to get our 30 band design! $124DD254-HD30: Conversion module with 3 ohm pro rheostat. Standard 148 ohm network. $162 1/24 HD30 RESISTOR NETWORKS Miniature plug in circuit board allows racer to change the overall band resistance to best suit the type of motor being used. The higher the listed ohms the slower the band response and the lower the listed ohms the faster the band response. The standard networks are soldered and ready to install and have the same value resistance per band. The custom networks have miniature sockets and various values of resistors that can be mixed and matched to get the desired band response. All controllers and modules come standard with a 148 ohm network. As a comparison, our 15 band Fanatic controllers have 150 ohms of total resistance. Note: the network resistance shown, 180 ohms for example, is the resistance needed to control our transistor circuit and should not be confused with the ohms rating on a typical Parma type resistor. DD255: Standard Resistor Network. 180 ohm, slower response for flat track scale racing. $16.50 DD256: Standard Resistor Network. 113 ohm, faster response for 16D, G12, G15 and G20 motors. $16.50 DD257: Standard Resistor Network. 78 ohm, very fast response for G15, G20, G27 and G7 type motors. $16.50 DD262: Standard Resistor Network. 290 ohm, very slow response for H.O. and all 1/32 scale home set cars. $16.50 DD258: Custom Resistor Network. Slow response. 33 each of 3 different value resistances let you customize response for scale racing. 136, 162 and 192 ohms of total resistance if the same value is used per band. You can also mix and match resistors to best suit your track and driving style. $24,50 DD259: Custom Resistor Network. Faster response. 33 each of 3 different value resistances let you customize response for higher speed tracks and motors. 87, 113 and 136 ohms of total resistance if the same value is used per band or you can mix and match response to best suit your track and driving style. $24.50DD260: Custom Resistor Network. Very Fast response. 33 each of 3 different value resistances for customized response for high power G15, G20, G27 and G7 motors. 64, 87 and 113 ohms of total resistance if the same value is used per band. You can also mix and match to best suit your track and driving style. $24.50 1/24 HD30 UPGRADE PCB DD261: HD30 Upgrade PCB: Convert your 10 or 15 band Pro Plus or Fanatic controller to our new 30 band high definition design. You get the HD30 circuit board with a standard 148 ohm network board installed. Simply unsolder a few wires and remove the old PCB. Transfer the original brake and sensitivity rheostats over to the new HD30 board. Now bolt the PCB to the frame and solder a few wires to their correct positions. Simple instructions included. $561/24 FANATIC UPGRADE PCB DD243: Fanatic Upgrade PCB: Convert your 10 band Pro Plus or Fanatic controller to our 15 band Fanatic module. Pots are already soldered to our 15 band Fanatic board. Our 15 band Fanatic circuit board gives you the convenience of instantly adjustable sensitivity on each controller band. 150 ohm total resistance gives you a wider range then the standard 113 ohms on our Pro Plus controllers. Simple instructions included. $39 DD244: Fanatic Upgrade Pots. Kit includes 15) 10 ohm Fanatic pots to convert your 15 band Pro Plus controller to a Fanatic model. Unsolder and remove the individual resistors and solder the new Fanatic pots in place. $22 DD245: Fanatic Upgrade Pots. Kit includes 15) 20 ohm Fanatic pots to convert your 15 band Pro Plus controller to a Fanatic model. 20 ohm pots give a very slow response for 1/24 scale racing and will also run H.O. and 1/32 Home set type cars. Unsolder and remove the individual resistors and solder the new Fanatic pots in place. $22 "E"MOTION ACCESSORIES

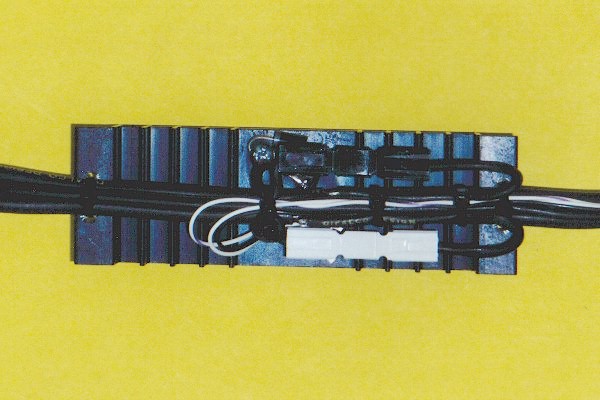

DD217
-
DUAL POLARITY KIT. High amperage silver plated connectors to convert all
"E"MOTION

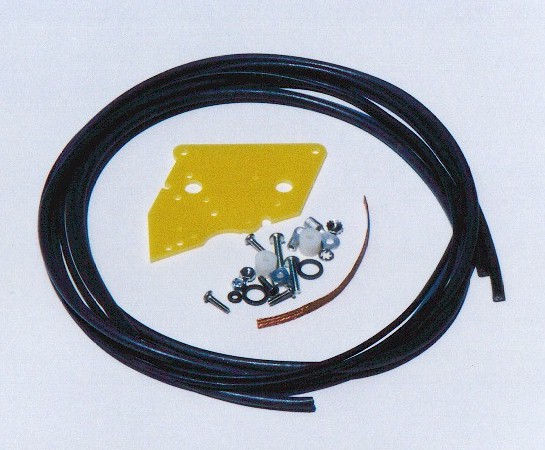

modules and controllers to work on both polarity tracks! Color coded to indicate polarity. $11.00 DD228-10 - "E"MOTION 1 BYPASS SWITCH KIT. For original 10 band "E"MOTION 1 controllers and modules. Can be used as mush button. Solders right on rear edge of circuit board for easy thumb operation! Reduces sensitivity for pulling through glue zones after track calls and de-slotting. Saves laps. A must for wing cars on sticky stacks. $12.50 DD228-15 "E"MOTION 2 BYPASS SWITCH KIT. For new "E"MOTION 2 controllers and modules. Used as mush button to reduce controller sensitivity. Helps car pull through glue zones after tracks calls and de-slotting. Solders on rear or front edge locations on circuit board. Saves laps. A must for wing cars on sticky tracks. $12.50 DD242 - D.I.Y. FRAME AND WIRE KIT. Build an original Difalco Design controller from scratch! Kit includes our fiberglass frame, hardware, trigger shunt and 10 gauge wire (DD904 kit). Pick any "E"MOTION module. Use an existing controller handle, trigger and clips and this kit. Do the work yourself an save! We recommend this kit instead of rewiring a Turbo frame. You will have a better controller and it will be easier to build. $32.00 |
|
