"E"MOTION TRANSISTOR CONTROLLERS
"E"MOTION 2 PRO PLUS CONTROLLERS

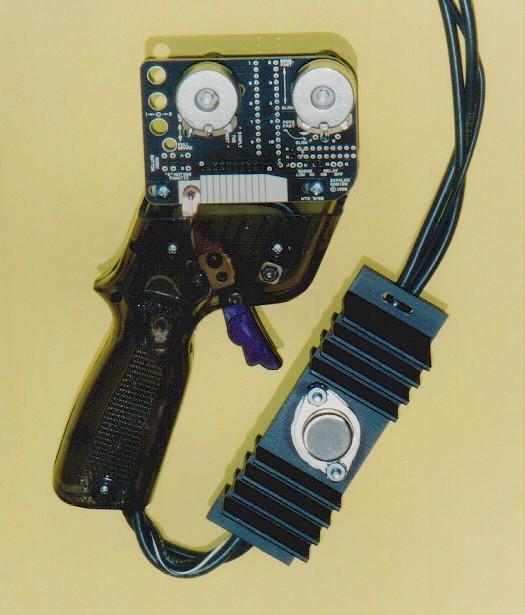

DD238-15
-
"E"MOTION 2 PRO PLUS CONTROLLER - 15 BAND.
Positive polarity. Our lowest priced electronic controller that will handle a Group 7 motor. Uses
DD229 module with economy brake rheostat. $214

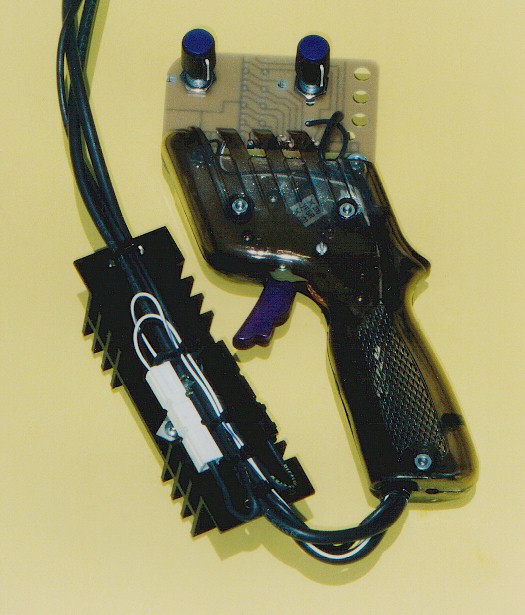

DD239-15
-
"E"MOTION 2 PRO PLUS CONTROLLER - 15 BAND.
Dual polarity version of
DD238.
$236

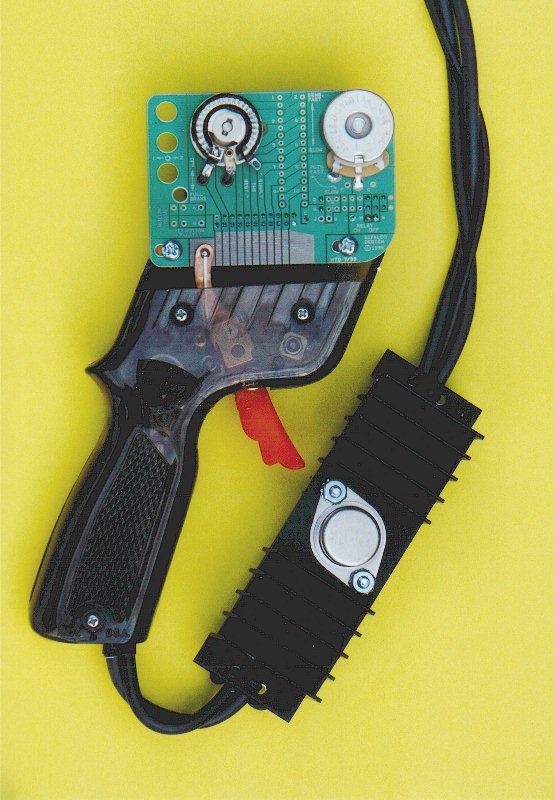

DD240-15
-
"E"MOTION 2 PRO PLUS CONTROLLER - 15 BAND.
Positive polarity. Uses
DD225 module. This is the choice if you want our
Pro Brake Rheostat but do not need the relay. $254

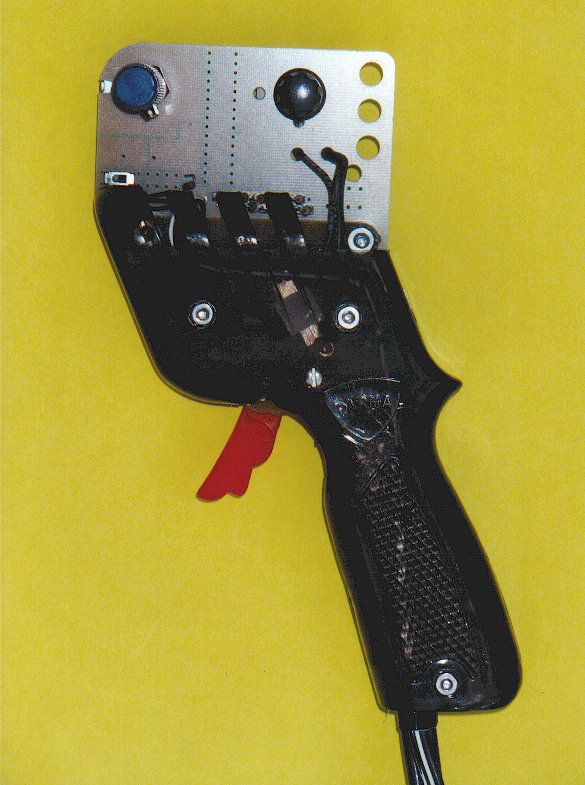

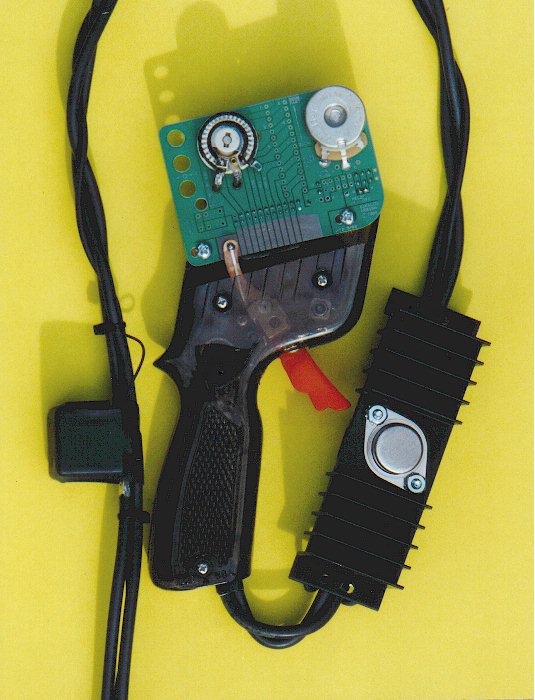

DD226-15
-
"E"MOTION 2 PRO PLUS CONTROLLER - 15 BAND.
Positive polarity. Uses
DD225 module.
Pro Brake Rheostat.
"Blast"
full power relay. Our most popular model. $280
DD227-15
-
"E"MOTION 2 PRO PLUS CONTROLLER - 15 BAND.
Dual polarity version of
DD226.
"Blast"
relay. $304
"E"MOTION 2 FANATIC CONTROLLERS
DD236-15
-
"E"MOTION 2 FANATIC CONTROLLER - 15 BAND.
Positive polarity. Our best controller uses the
DD231 module with
Pro Brake Rheostat and
"Blast"
full power relay. $310
DD237-15
-
"E"MOTION 2 FANATIC CONTROLLER - 15 BAND.
Dual polarity version of
DD236
model. $334 “E”MOTION 3 FEATURES

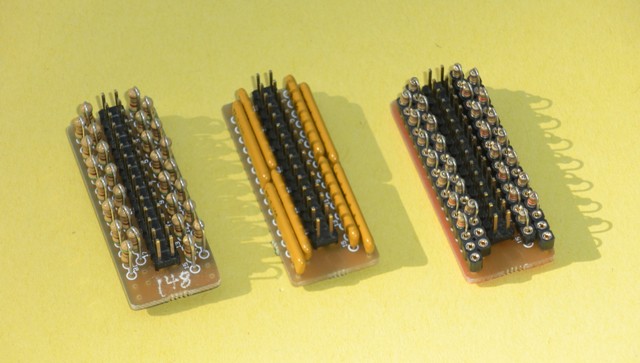

DD250-HD30: The same overall construction as our current controllers. Economy brake rheostat gives great control for scale cars at a great price. Comes standard with a 148 ohm HD30 network (medium response) installed which is best for 16D and G12 motors. Positive polarity (easily converted to negative polarity). $252 DD251-HD30: Upgraded Pro brake rheostat with new 3 ohm resistance for wider range for scale racing. Full power relay. Comes standard with 148 ohm HD30 network (medium response) installed which is best suited for 16D and G12 motors. Positive polarity (easily converted to negative polarity). $318 DD252-HD30: Upgraded Pro brake rheostat with new 3 ohm resistance for wider range for scale racing. Full power relay. Comes standard with 148 ohm HD30 network (medium response) installed which is best suited for 16D and G12 motors. Comes with dual polarity. $342 1/24 HD30 RESISTOR NETWORKS Miniature plug in circuit board allows racer to change the overall band resistance to best suit the type of motor being used. The higher the listed ohms the slower the band response and the lower the listed ohms the faster the band response. The standard networks are soldered and ready to install and have the same value resistance per band. The custom networks have miniature sockets and various values of resistors that can be mixed and matched to get the desired band response. All controllers and modules come standard with a 148 ohm network. As a comparison, our 15 band Fanatic controllers have 150 ohms of total resistance. Note: the network resistance shown, 180 ohms for example, is the resistance needed to control our transistor circuit and should not be confused with the ohms rating on a typical Parma type resistor.
DD255: Standard Resistor Network. 180 ohm, slower response for flat track scale racing. $16.50 DD256: Standard Resistor Network. 113 ohm, faster response for 16D, G12, G15 and G20 motors. $16.50 DD257: Standard Resistor Network. 78 ohm, very fast response for G15, G20, G27 and G7 type motors. $16.50 DD262: Standard Resistor Network. 290 ohm, very slow response for H.O. and all 1/32 scale home set cars. $16.50 DD258: Custom Resistor Network. Slow response. 33 each of 3 different value resistances let you customize response for scale racing. 136, 162 and 192 ohms of total resistance if the same value is used per band. You can also mix and match resistors to best suit your track and driving style. $24.50 DD259: Custom Resistor Network. Faster response. 33 each of 3 different value resistances let you customize response for higher speed tracks and motors. 87, 113 and 136 ohms of total resistance if the same value is used per band or you can mix and match response to best suit your track and driving style. $24.50
DD260: Custom
Resistor Network. Very fast response. 33 each of 3 different value resistances
for customized response for high power G15,G20, G27 and G7 motors. 64, 87 and 113
ohms of total resistance if the same value is used per band. You can also mix
and match to best suit your track and driving style. $24.50
DD261: HD30
Upgrade PCB: Convert your 10 or 15 band Pro Plus
or Fanatic controller to our new 30 band
high definition design. You get the HD30
circuit board with a standard 148 ohm network board installed. Simply unsolder a
few wires and remove the old PCB. Transfer the original brake and sensitivity
rheostats over to the new HD30 board. Now
bolt the PCB to the frame and solder a few wires to their correct positions.
Simple instructions included. $56 DD243: Fanatic Upgrade PCB: Convert your 10 band Pro Plus or Fanatic controller to our 15 band Fanatic module. Pots are already soldered to our 15 band Fanatic board. Our 15 band Fanatic circuit board gives you the convenience of instantly adjustable sensitivity on each controller band. 150 ohm total resistance gives you a wider range then the standard 113 ohms on our Pro Plus controllers. Simple instructions included. $39 DD244: Fanatic Upgrade Pots. Kit includes 15) 10 ohm Fanatic pots to convert your 15 band Pro Plus controller to a Fanatic model. Unsolder and remove the individual resistors and solder the new Fanatic pots in place. $22 DD245: Fanatic Upgrade Pots. Kit includes 15) 20 ohm Fanatic pots to convert your 15 band Pro Plus controller to a Fanatic model. 20 ohm pots give a very slow response for 1/24 scale racing and will also run H.O. and 1/32 Home set type cars. Unsolder and remove the individual resistors and solder the new Fanatic pots in place. $22 |
||||
